Description

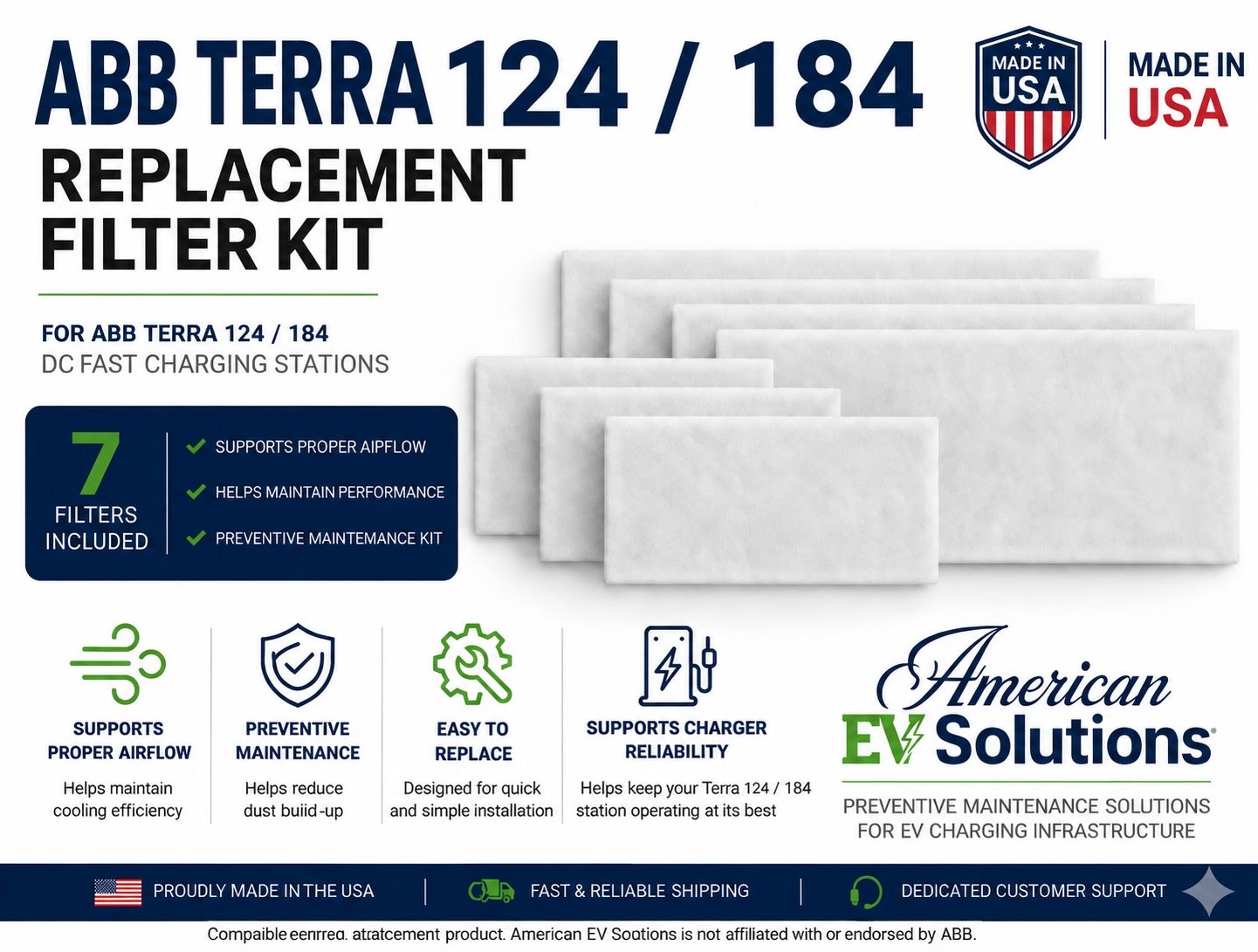

Complete ABB Terra 124 / Terra 184 Replacement Filter Set

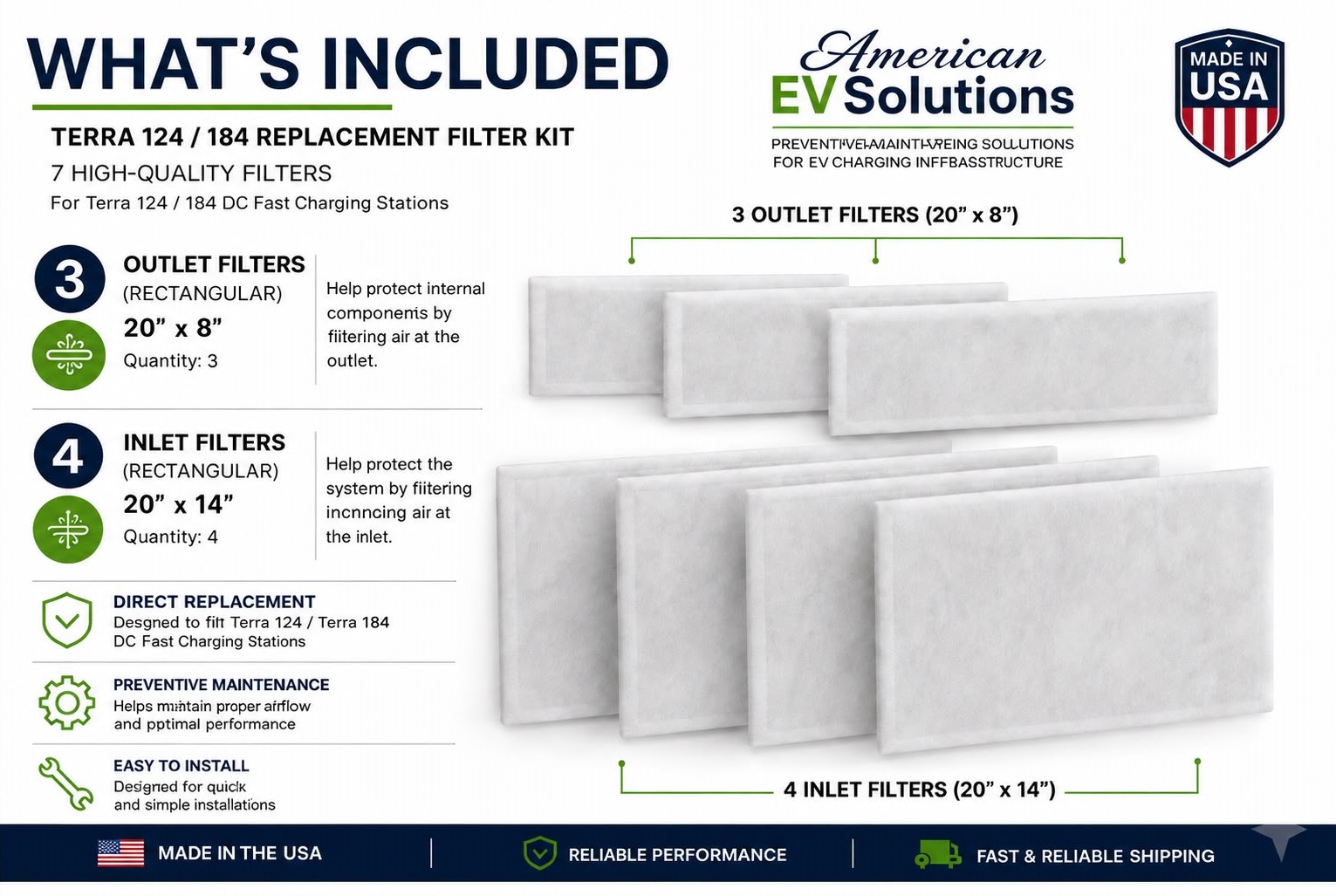

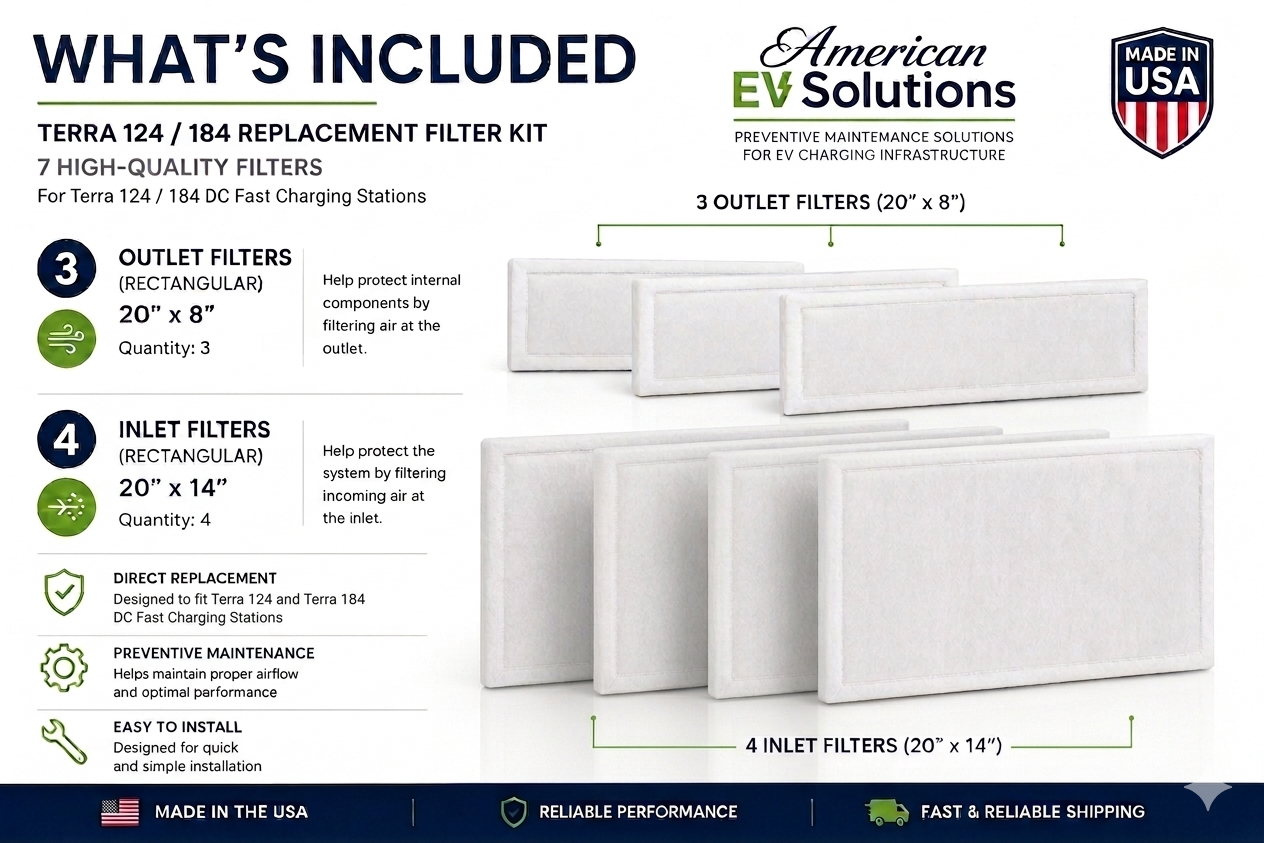

What Is Included

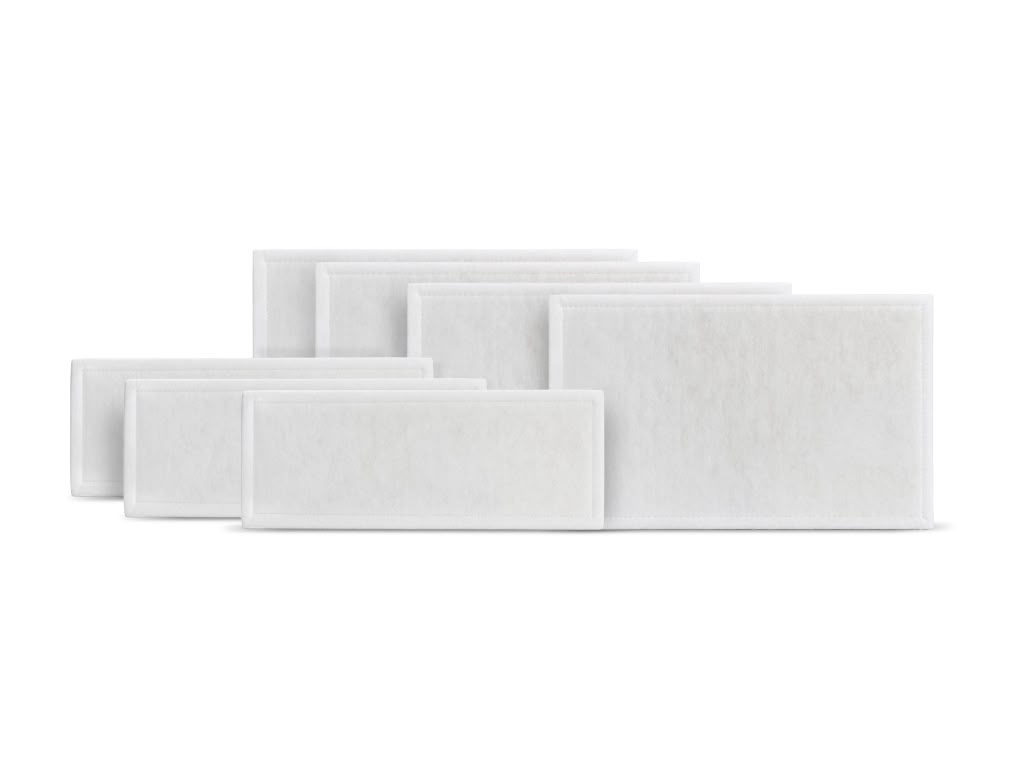

- Complete replacement set (4 Inlet / 3 Outlet Filters), configured for routine preventive maintenance of ABB Terra 124 /Terra 184 DC fast chargers
- High-quality filter media designed to support proper airflow through the charger cabinet
- Replacement filters sized for direct installation in the original filter housing
Proudly made in the USA.
Compatibility
This aftermarket filter kit is designed for compatibility with ABB Terra 124 / Terra 184 DC fast chargers.
OEM Reference Numbers:
Inlet Filter — Replaces ABB P/N XUF.N0001.0
Outlet Filter — Replaces ABB P/N XUF.N0002.0
Reference numbers are provided for compatibility identification only.
Please verify your charger model and existing filter configuration before ordering. If you are unsure which kit is required, contact American EV Solutions for assistance.
Why Filter Maintenance Matters
Proper airflow is essential to the reliable operation of DC fast charging equipment. Charger cooling systems depend on clean filters to help prevent dust and airborne contaminants from accumulating on sensitive electrical and electronic components.
American EV Solutions filters are manufactured using high-quality filtration media selected for demanding equipment applications. The filter construction is designed to support proper airflow through the charger cabinet while helping capture airborne dust and debris.
As filters become loaded with contaminants over time, airflow resistance increases, which can contribute to elevated cabinet temperatures and place additional demand on cooling systems. Restricted airflow may affect thermal performance and can lead to charger derating, unexpected service interruptions, or additional maintenance requirements.
Following the recommended inspection and replacement intervals is an important part of a comprehensive preventive maintenance program and helps support reliable charger operation throughout the equipment’s service life.
Replacement Guidelines
Inspection Interval:
Inspect the filters every 3–6 months, depending on environmental conditions and dust exposure.
Replacement Interval:
Replace the filter elements annually, or sooner in high-dust environments, to help maintain proper airflow and reduce the risk of heat buildup inside the charger cabinet.
Filter Condition:
Light surface dust may be removed during routine inspections. Filters that are heavily contaminated, damaged, or airflow-restricted should be replaced promptly to help maintain optimal charger performance.
Environments such as construction sites, industrial facilities, coastal regions, or areas with elevated pollen levels may require more frequent inspections and filter replacements.
Installation Procedure
- Power Down – Isolate and completely switch off the AC power supply to the charging station before performing maintenance.
- Open the Cabinet – Use the appropriate access key to open the charger access door.
- Remove the Existing Filter – Carefully remove the used filter media from its retaining frame.
- Inspect the Filter Area – Remove any accumulated dust or debris from the filter housing and surrounding surfaces.
- Install the Replacement Filter – Insert the new filter, ensuring it is properly seated and fits securely without gaps.
- Restore Power – Close the cabinet, secure all access panels, and return the charging station to service in accordance with the manufacturer’s procedures.
Important Notice:
This product is an aftermarket replacement filter kit designed for compatibility with ABB Terra chargers. American EV Solutions is not affiliated with, endorsed by, or sponsored by ABB. All manufacturer names, trademarks, and model designations are used solely to identify product compatibility.
Always follow the equipment manufacturer’s maintenance and safety procedures when servicing charging equipment.
For facilities operating multiple charging stations, maintaining replacement filter kits in inventory can help minimize downtime during scheduled preventive maintenance activities.
