Description
ABB Terra 54 Inlet Filter Kit – 2 Filters
What Is Included

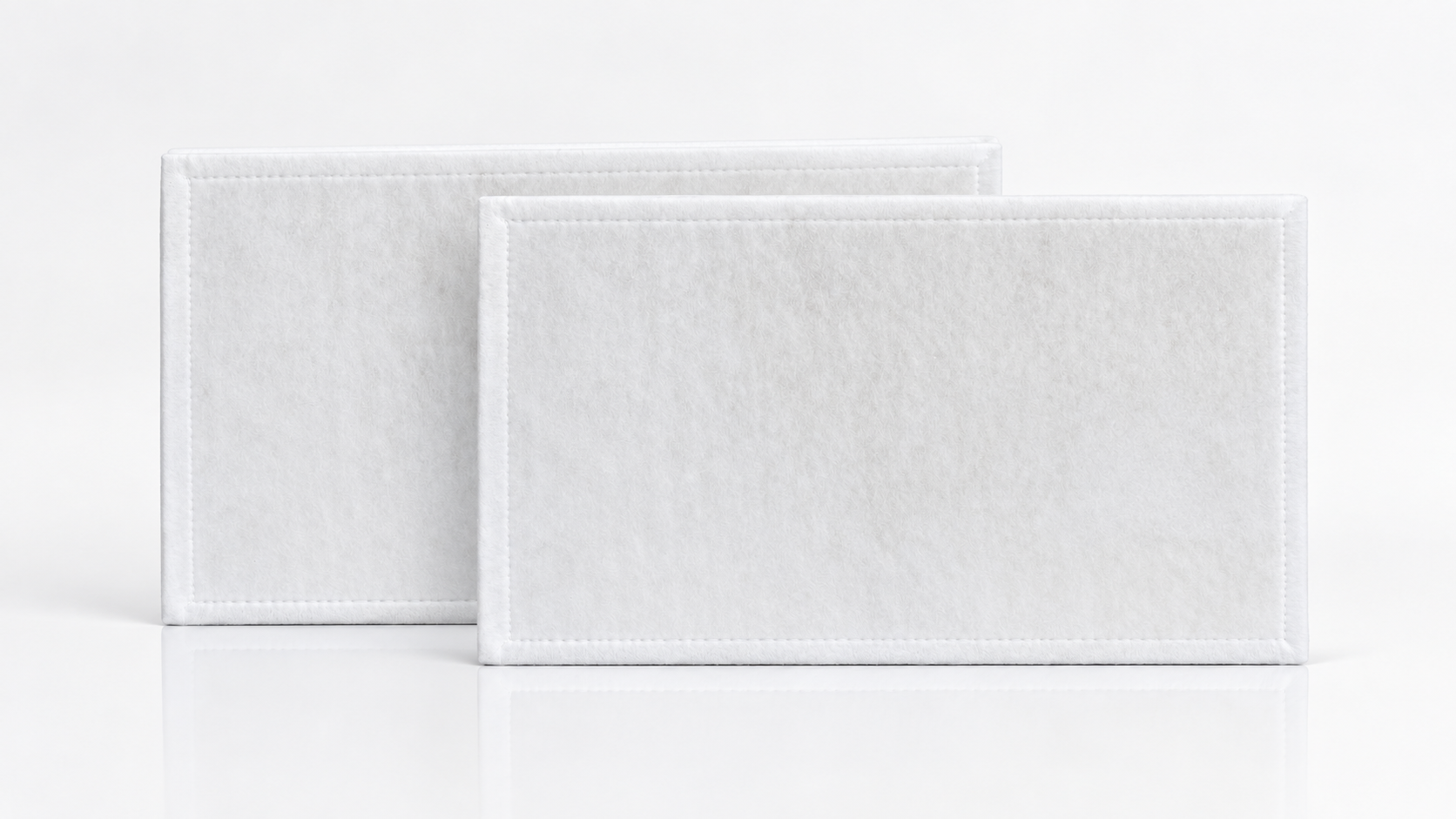

- 2 replacement inlet filter elements (20″ × 14″)
- Compatible with ABB Terra 54 DC fast chargers
- High-quality filtration media designed to support proper airflow through the charger cabinet
- Sized for installation in the existing inlet filter housings
Proudly made in the USA.
Compatibility
This aftermarket inlet filter kit is designed for compatibility with ABB Terra 54 DC fast chargers.
Kit Configuration:
2 inlet filters
20″ × 14″ each
Please verify your charger model, filter dimensions, and existing filter configuration before ordering. If you are unsure which kit is required, contact American EV Solutions for assistance.
Why Filter Maintenance Matters
Proper airflow is important for reliable DC fast charger operation. Clean inlet filters help reduce dust and airborne contaminants entering the charger cabinet while supporting airflow through the cooling system.
As filters accumulate contaminants, airflow resistance can increase and may contribute to higher cabinet temperatures and increased demand on the cooling system.
Regular inspection and timely filter replacement can help maintain proper airflow and support reliable charger operation.
Recommended Inspection & Replacement
Inspection:
Inspect filters every 3–6 months, with more frequent inspections in dusty or demanding environments.
Replacement:
Replace approximately annually or based on condition, and sooner if filters become heavily contaminated, damaged, or airflow-restricted.
Construction sites, industrial facilities, coastal environments, and areas with high pollen or airborne debris may require more frequent service.
Maintenance intervals should follow the applicable charger manufacturer’s service documentation and site operating conditions.
Installation
- Power Down — Follow the charger manufacturer’s shutdown, isolation, and electrical safety procedures before servicing.
- Access Filter Area — Open the appropriate service panel according to the manufacturer’s instructions.
- Remove Existing Filters — Carefully remove both existing inlet filter elements.
- Inspect & Clean — Remove accumulated dust and debris from the filter housings as appropriate.
- Install Replacement Filters — Install both new filters in the correct orientation and ensure they are properly seated.
- Return to Service — Secure all panels and restore the charger to service according to the manufacturer’s procedures.
Important Notice
This product is an aftermarket replacement filter kit designed for compatibility with ABB Terra chargers. American EV Solutions is not affiliated with, endorsed by, or sponsored by ABB. All manufacturer names, trademarks, and model designations are used solely to identify product compatibility.
Always follow the equipment manufacturer’s maintenance and electrical safety procedures when servicing DC fast charging equipment.
For facilities operating multiple charging stations, keeping replacement filters in inventory can help reduce downtime during scheduled preventive maintenance.
